We offer a large range of single and double glazed flush or centre pocket commercial framing, from the Derwent 76mm up to the 225mm EcoWall.
Categories
Commercial Framing
© 2022 All rights reserved
Category: COMMERCIAL
Categories
Commercial Awning/Casement Window
Our range of commercial Awning and Casement windows are ideal for suburban housing, multi-unit residential, hotels and commercial applications. The Awnings and Casements can integrate with a number of Alspec® Commercial Framing systems by using different awning adaptors.
The 35mm and 50mm sashes offer the benefit of overlapping internal and external seals to achieve superior weather performance. The 443 30mm sash sits inset of the framing and can offer a flush appearance.
Various glazing options for single and double glazing are available. All Awnings and Casements can be used with a range of available stays and operated with Chainwinders or Cam handles, locking or non-locking. With the use of our Chainwinder adaptor insect and security screens can easily be added from the inside of
the building.
Specifications
• Maximum Sash Height: 1800mm
• Maximum Sash Width: 1200mm
• Maximum Glass Thickness: 16mm or 30mm IGU
Compatible Systems
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Derwent 76mm Centre Pocket Framing
• Ecowall 225 Flush Glazed Framing
Hardware
Our chainwinder is available in standard or restricted length, depending on the size and application of the sash. These winders have been tried and proven in
commercial applications, such as schools and offices.
Features
• Adjustable chain restrictions to 300mm, 150mm or 100mm
• Corrosion resistant Stainless Steel chain
• Can be wound closed when locked
• 5 disc wafer cylinder
• Foldable handle
• Keyed alike
• Key locking

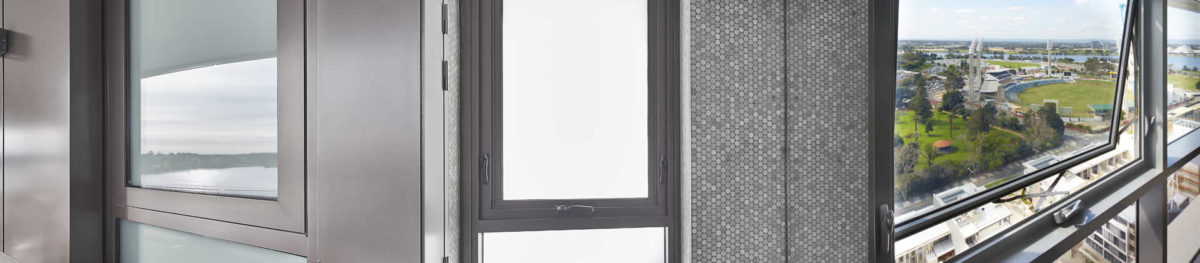

Alspec’s ProTilt High Performance Awning and Casement Windows are ideally suited for suburban housing, multi-unit residential, hotels and commercial applications.
Featuring overlapping internal and external seals, the ProTilt Awning and Casement Window is the preferred choice where superior weather performance is required.
A range of glass thickness options from 4mm to 28mm allows the system to be configured for excellent thermal and acoustic performance.
The system can be used with a range of available stays while also offering multi-point locking options and a proprietary operator. The ProTilt seamlessly interfaces
with Alspec’s McArthur Evo and Hunter Evo Commercial Framing Systems.
Specifications
• Maximum Panel Height: 2100mm*
• Maximum Panel Width: 1000mm*
• Maximum Glass Thickness: 16mm or 28mm IGU
*Varies depending on weight
Compatible Systems
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
Hardware
A compact and stylish scissor winder used in conjunction with jamb to stile latches. TruthTM awning and casement winders are ideal for large awning and casement
windows, fully operable with flyscreens and provide a 90° opening. Available in a range of powder coat finishes.
Categories
View Max Commercial Sliding Window
The View-Max® window offers unparallel levels of flexibility by allowing designers and architects the choice of 76mm (Derwent) or 101.6mm (McArthur) framing to cater for both the slimline applications and those of a more robust commercial design.
The View-Max® window offers the flexibility of single and double glazing options. The View-Max® integrates a number of design initiatives unique to
Alspec® such as the proprietary locking, roller and drainage systems.
Developed specifically for multi-storey residential and architecturally designed housing View-Max® windows offer superior weather, thermal and acoustic performance.
Specifications
• Maximum Panel Height: 1600mm
• Maximum Panel Width: 1200mm
• Maximum Glass Thickness: 10.38mm or 18mm IGU
• Maximum Panel Weight: 50kg
Compatible Systems
• McArthur Evo 101.6mm Centre Pocket Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Derwent 76mm Centre Pocket Framing
Categories
Sashless Double Hung Window
Our Sashless Double Hung Window offers unobstructed views whether the window is open or closed. The two panes of glass slide smoothly and effortlessly past each other with a minimalist design. It creates a clean and modern aesthetic feel while also providing maximum ventilation.
Key Features
• 2, 3, 4 pane configurations
• New build and retrofit compatible
• Snap in jambs providing concealed fixings and pulleys
• Vent lock and key locking options
• Ease of assembly
• Excellent water, bush fire, acoustic and energy performance
Specifications
• Maximum Panel Height: 1800mm
• Maximum Panel Width: 1500mm
• Maximum Glass Thickness: 10.38mm or 18mm IGU
The Alpsec® Swan EvoTM 45mm Commercial Door is a versatile shopfront door that is easy to fabricate and install. Suitable for a wide range of applications, the Swan EvoTM can be used in hinged, pivoted or sliding configurations. The Swan EvoTM integrates seamlessly with the Alspec® commercial framing systems.
Featuring a new and improved clamping spigot set, for superior performance and easy fitment, integrated heal and toe block and captive glazing option, the Swan
EvoTM provides the ideal solution where superior operation and performance is required. Glazing could not be simpler with the colour coded wedges from standard
Alspec® systems being utilised to deal with the many diverse glass options.
Specifications
• Maximum Panel Height: 3000mm
• Maximum Panel Width: 2400mm*
• Maximum Glass Thickness: 12.4mm or 18mm IGU
• Maximum Panel Weight: 225kg*
*Varies depending on hinged, pivot or sliding door used.
Compatible Systems
• Derwent 76mm Centre Pocket Framing
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
Options
• A range of threshold options
• Traditional and retractable screening options available.
Hardware
The Swan Evo has a large range of lock stiles from the standard 75mm lock stile up to the 120mm wide stile option catering for special locks.
Categories
ProGlide High Performance Sliding Door
ProGlide® is an update of the Commercial Sliding Door featuring new sill sections for both Double and Triple Track and a number of new sash options that allow for thicker glass, double glazing and an on site glazing option.
The major changes include new sill sections with drop in tracks which can easily be replaced if damaged or worn and their unique design covers the unsightly
drainage slots in the sills with the added benefit of increased water performance. All existing hollow sills continue to be available for applications where a sub sill is
not used.
Gutter sills in both double and triple track versions are now available for flush sill applications and these incorporate an aluminium, or stainless steel grate to drain
surface water.
A comprehensive range of sash options are now available for ProGlide®:
• Existing SG sashes for 5mm – 10.38mm glass
• New sashes with 18mm wide pockets to accept glass up to 14mm
• New DG sashes for 18mm – 25mm IGU’s
• Glazing adaptor and rail for 28mm IGU’s
• New deep pocket SG sashes for onsite glazing 5mm – 6.76mm wet glazed on site
• New onsite DG sashes for 18mm, 24mm and 25mm IGU’s wedge glazed using “eco” range of gaskets.
These new sill and sash options add to a comprehensive list of features and benefits of the ProGlide® High Performance Sliding Door. These include a wide range of
interlocks combinations to meet height and wind load requirements, standard lock stiles that accept face fix or mortice locks, wide stile options catering for special
locks, highlite and screening options.
These ongoing developments will ensure that the ProGlide® High Performance Sliding Door remains at the forefront of sliding door design.
Specifications
• Maximum Panel Height: 3150mm
• Maximum Panel Width: 2250mm
• Maximum Glass Thickness: 13.5mm or 28mm IGU
• Maximum Panel Weight: 200kg per panel
Compatible Systems
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
Options
• A range of sill options for water or recessed openings.
• Traditional and retractable screening options available.
Hardware
The standard lock stiles will accept face fix or mortice locks with a wide stile options catering for special locks
Categories
Altitude Apartment Sliding Door
The new Altitude® Sliding Door has been specifically designed with the latest trends in architecture in mind. The door allows architects and designers the ability to achieve expansive openings without the need to compromise on performance or aesthetics.
Specifying the Alspec® Altitude® Sliding Door ensures the client receives a stylish, high performance product.
Designed by Alspec® to meet the extremes of the Australian environment, the Altitude® Apartment Sliding Door is the premier choice by architects, builders, home
owners and fabricators when looking for a great sliding door.
Specifications
• Maximum Panel Height: 2700mm
• Maximum Panel Width: 1500mm
• Maximum Glass Thickness: 12.4mm or 18mm IGU
• Maximum Panel Weight: 160kg per panel
Compatible Systems
• Derwent 76mm Centre Pocket Framing
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
• Hunter Evo 150mm Double Flush Glazed Framing
Options
• A range of sill options for water or recessed openings.
• Traditional and retractable screening options available.
Hardware
The Altitude Apartment sliding door lock stiles are compatible with a variety of surface mount locks.
Categories

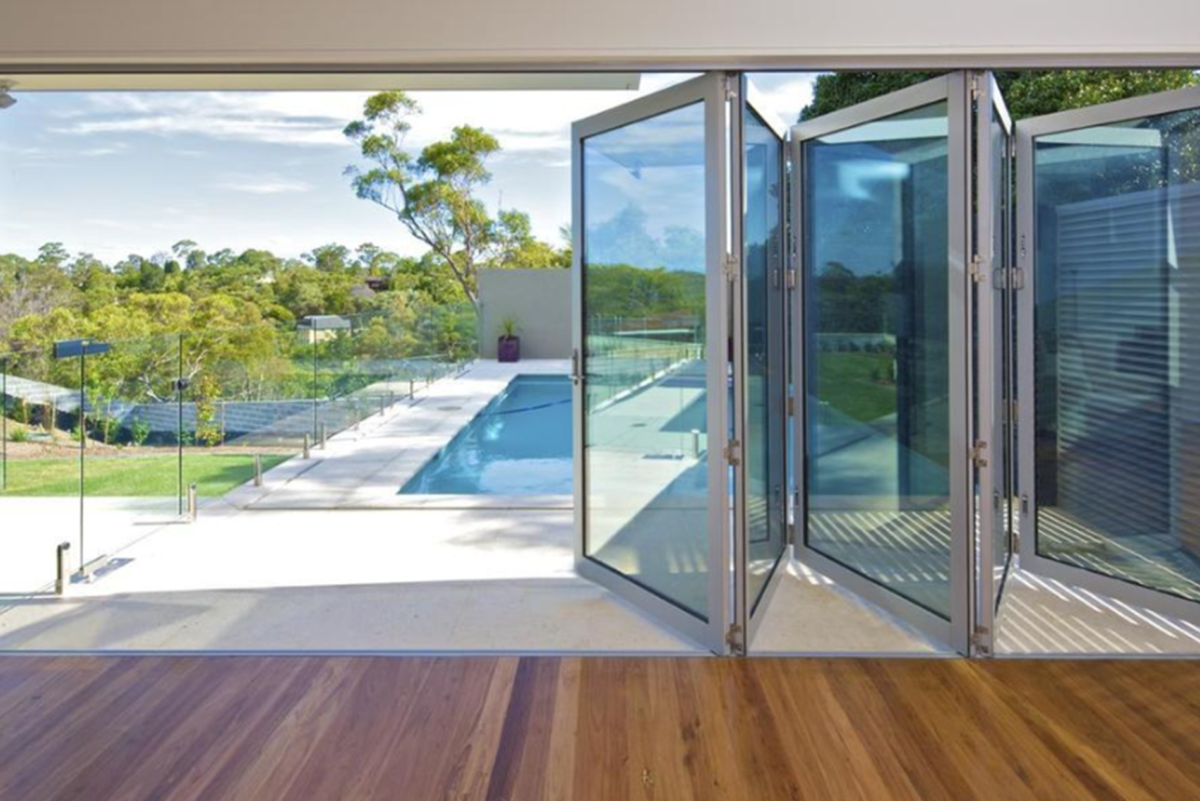

Hawkesbury Commercial Multi-Fold Door
Designed with large floor to ceiling applications in mind, the Hawkesbury® Multi-Fold Door Range combine full sized commercial perimeter framing with specially designed commercial door stiles. A functional alternative to traditional door units in lighter commercial and residential applications the Hawkesbury® E2 and E3 Door Range removes the barriers to allow flow between indoor and outdoor living. Whether the doors are open in fine weather or securely fastened into place as sturdy impenetrable walls, the Alspec® Hawkesbury® Door is the only choice.
Specifications
• Maximum Panel Height: 3000mm
• Maximum Panel Width: 1000mm
• Maximum Glass Thickness: 13.5mm or 28mm IGU
• Maximum Panel Weight: 60kg E2A / 115kg E3A
Compatible Systems
• McArthur Evo 101.6mm Centre Pocket Framing
• Hunter Evo 101.6mm Single Flush Glazed Framing
• Hunter Evo 101.6mm Double Flush Glazed Framing
• ecoFRAMEplus 101.6mm Centre Pocket Double Glazed Framing
Options
• A range of sill options for water or recessed openings.
• Retractable screening options for insect protection.
Hardware
Powered by exclusive hardware from Centor Architectural the Hawkesbury® Door features top-rolling operation for smooth, trouble-free operation whether
configured for inward or outward stacking or with an odd or even number of door stiles. Tyred floor guides run effortlessly in channels neatly concealed beneath
closed doors, while effective Weatherseal technology keeps wind, rain and cold air where it belongs. The stabilising centre hinge controls door stile deflection and
bowing on tall doors, whilst the exclusive SurelockTM system allows for simple vertical height adjustment with a screwdriver.
Standard lock hardware options include Brio’s lever furniture, combined with Lockwood’s proven Optimum mortice lock. Fitting snug within the stile and allowing
an extended backset, this lock removes the common issue of minimal key distance to the jamb. Other lock options include commercial locksets and furniture for a
complete choice.
The Hawkesbury Top Hung Sliding Door from Alspec offers architects and designers unrivaled design flexibility with the freedom to achieve large expansive openings whilst also offering a weather resistant and wheelchair compliant sill. Specifying Alspec’s Hawkesbury Top Hung Sliding Door ensures the client receives a solid, durable high-performance product offering a continuous accessible path of seamless transition between internal and external floor finishes that is capable of large panel sizes up to 3000mm in height and 2500mm in width. Multi-stack
configurations are available using high quality E3 hardware by Centor.
Designed and manufactured in Australia to meet the extremes of the Australian environment, the Alspec Hawkesbury Top Hung Sliding Door is the first choice
amongst architects, builders, home owners and fabricators when performance and quality matter.
Specifications
• Maximum Panel Height: 3000mm
• Maximum Panel Width: 2500mm
• Maximum Glass Thickness: 13.5mm or 28mm IGU
• Maximum Panel Weight: 300kg per panel
Options
• A range of sill options for water or recessed openings.
• Retractable screening options for insect protection.
Hardware
The standard lock stiles will accept face fix or mortice locks with a wide stile options catering for special locks
